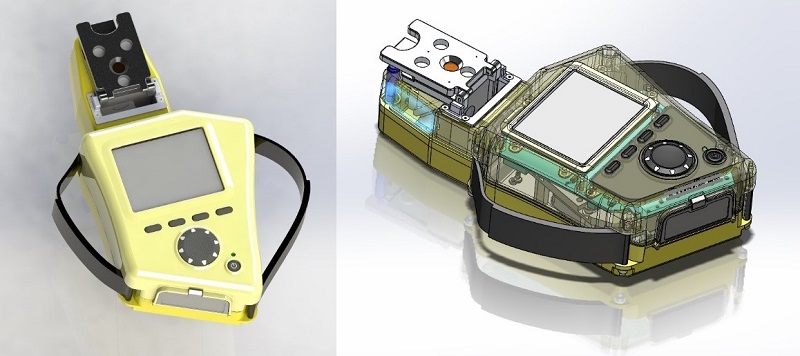

Hand Held Spectrometer

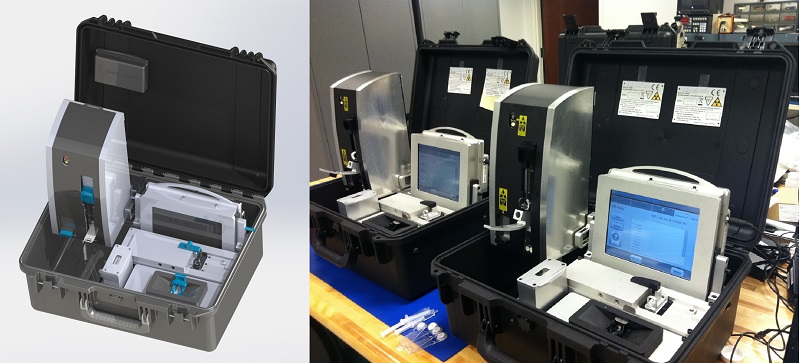

Portable Instrument Set (Model left, Implementation right)

1.5 Meter MWIR Continious Zoom Lens Assembly

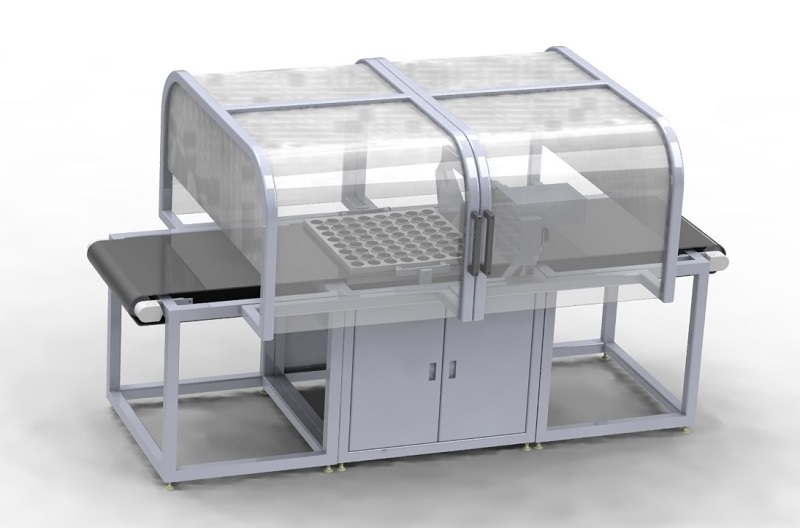

Laser Printing Gantry with Safety Guards

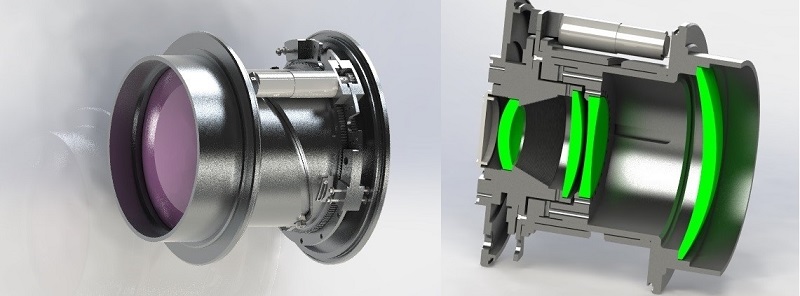

DFOV (Dual Field of View) IR Lens Assembly

Precision Pre-cure Microscope Alignment Fixture (+/-2.0 microns)

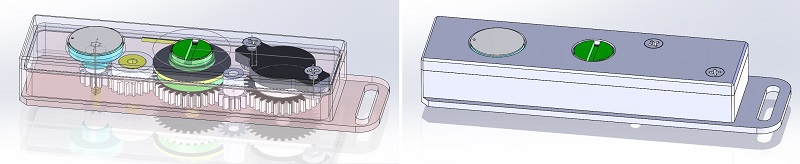

Line Mounted, Cellular Enabled, Vibration Sensor (Proto right, Model left)

2 DOF Alignment Tool

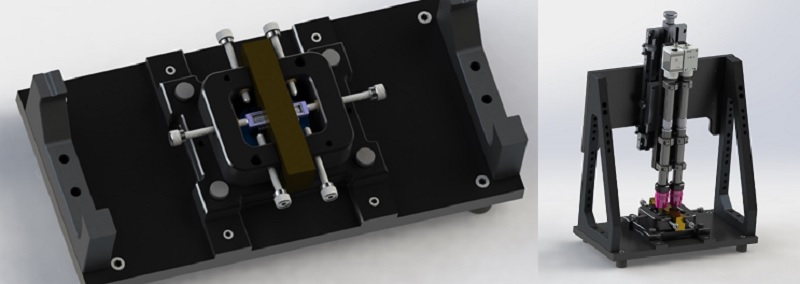

Multi-DOF Alignment Fixture (Model left, Implementation right)

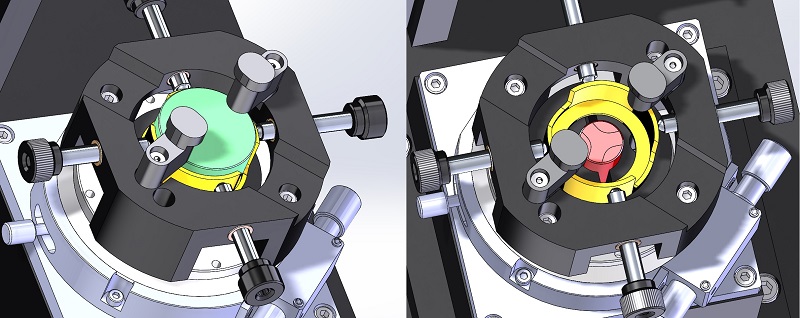

3 DOF Difractive Grating Mounting Tool

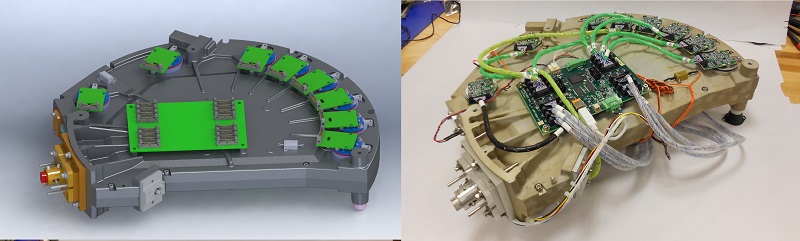

X-Ray Filter Wheel / Collimator Assembly (photo left, model right)

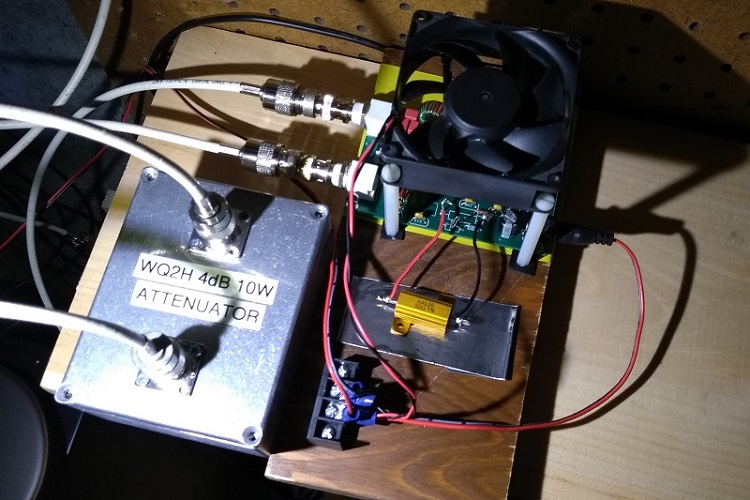

Novel 80m to 630m Downconverter for Digital Tx/Rx on 474 kHz (breadboard)

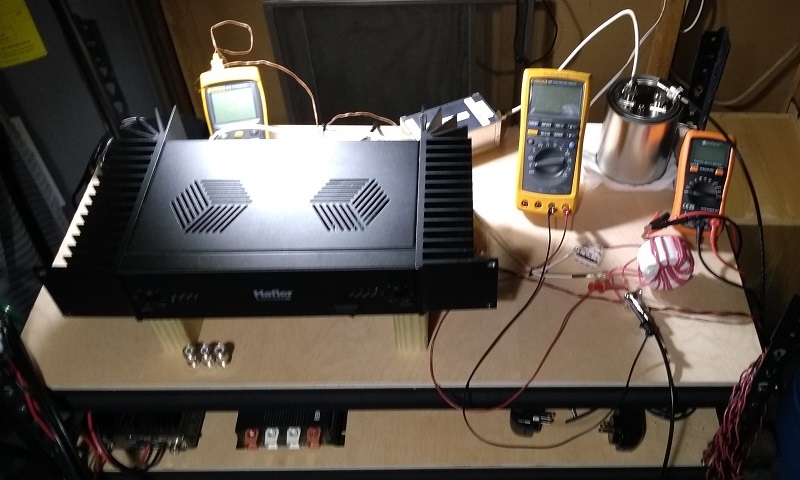

Novel Impedeance Modifications to a Hafler P3000 for Digital Tx/Rx on 2200m (137kHz)
Used for FCC ERS (Exprimental Longwave Transmitter) under FCC Grant issued to WQ2H as WK2XAH
(breadboard)

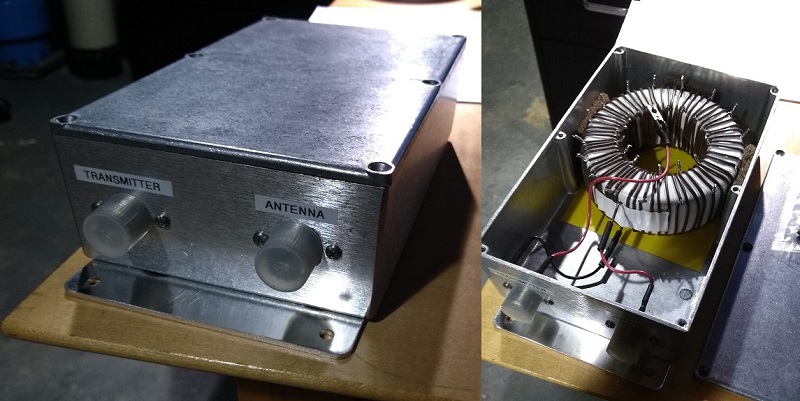

Simple Impedeance Match for 2200m

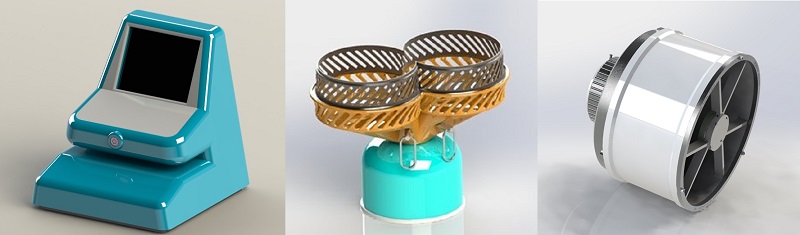

Currancy Analyser, 2-Burner Camp Stove, Catadioptric Lens

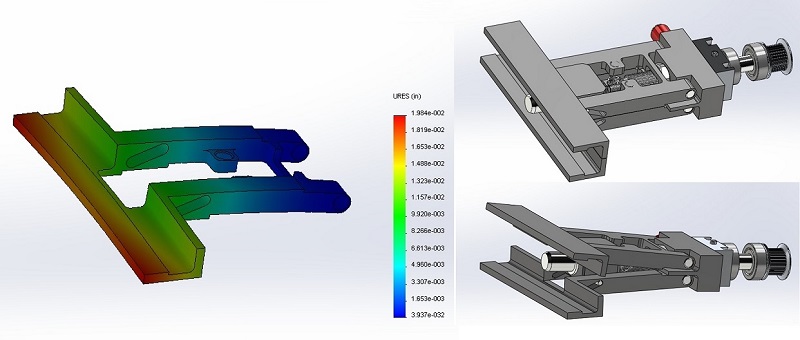

Rotating Pneumatic Gripper Assembly

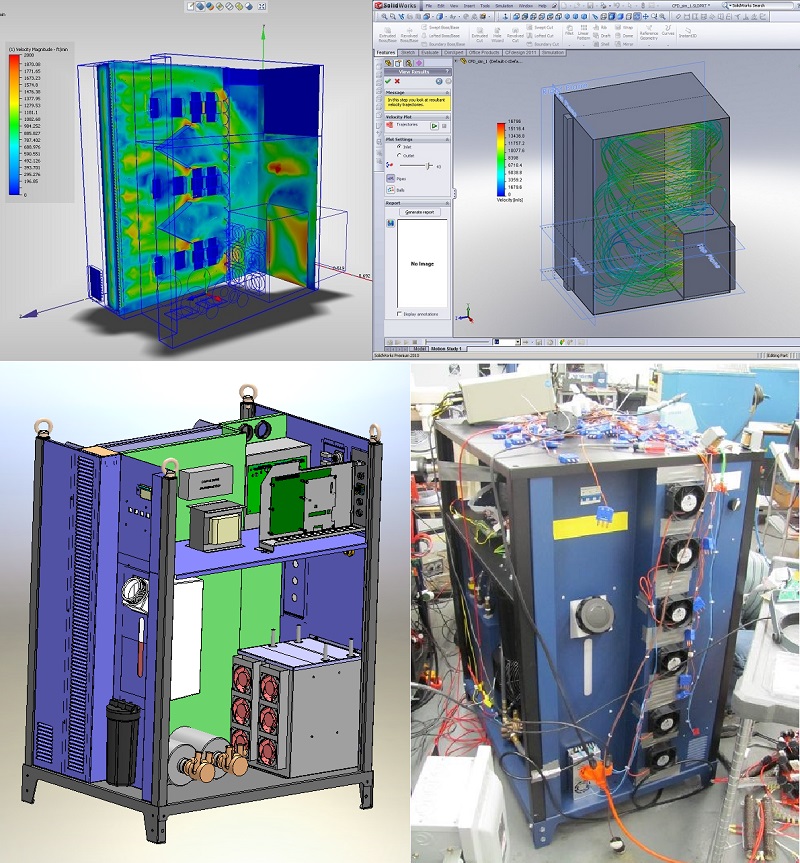

80 KVA Power Supply - CFD Models (SW & CF design), Partial Asembly Model, & Thermal Test Prototype

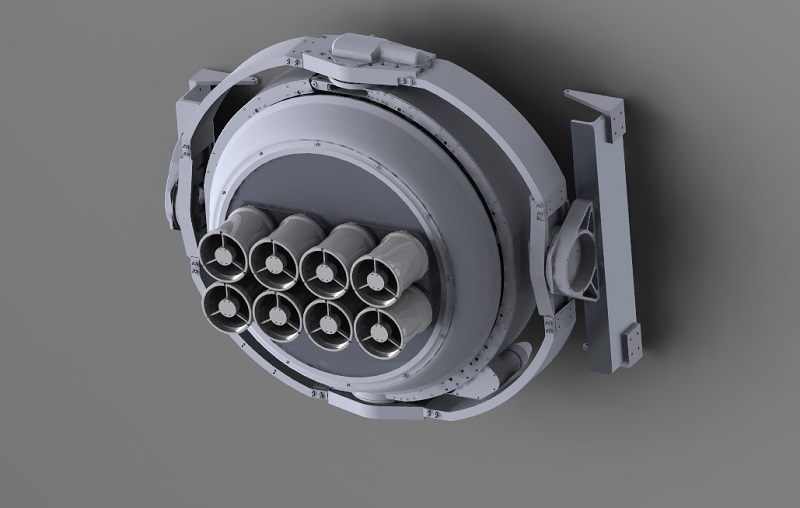

Hyperspectral Imager (containing 8 Catadioptric Telescopes) Mounted on a Gimbal

UV Optical Train w/ Articulated Beam

15 Channel Mass Spectrometer (Model left, Prototype Right)

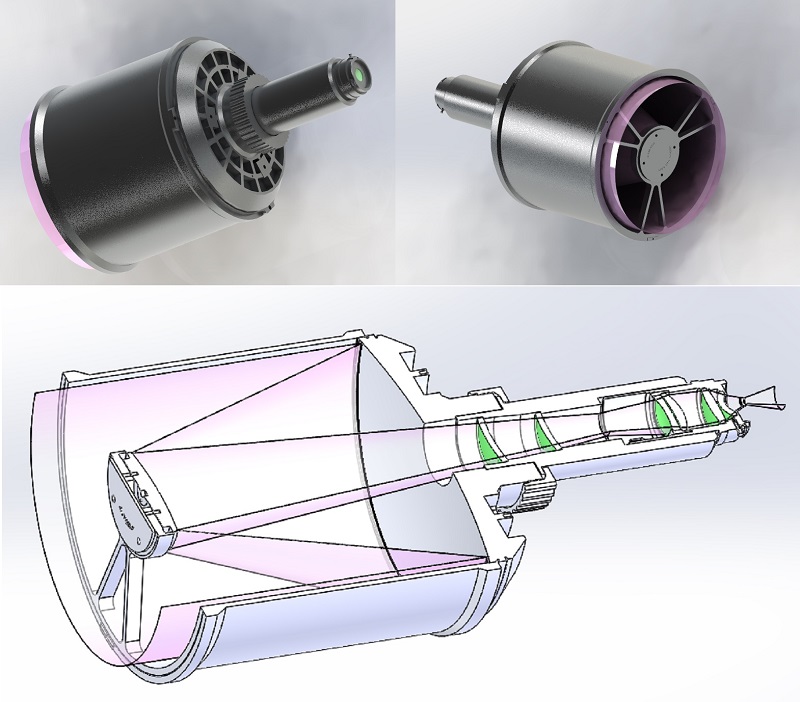

8 Element 1.5m Catadioprtic IR Lens

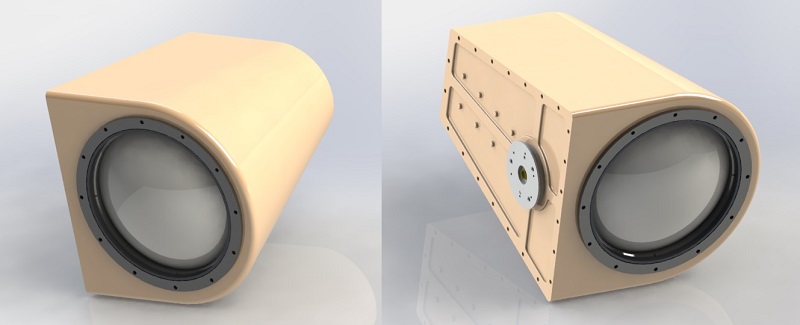

Dual-Band Image Overlay Collimator

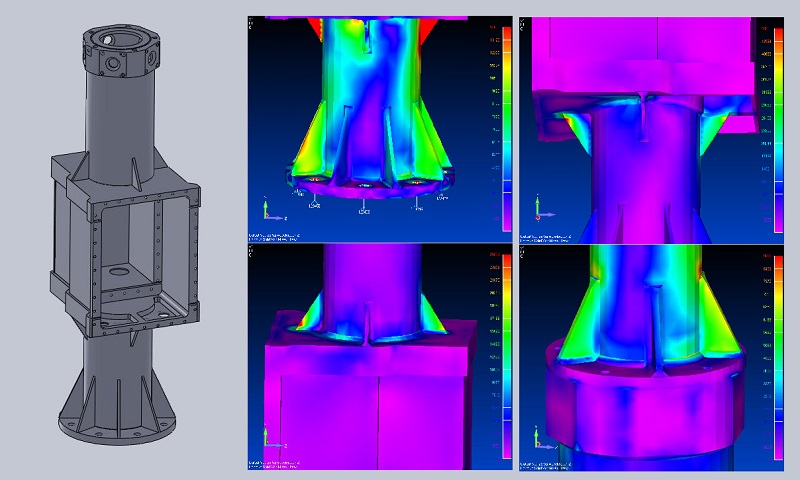

Base Weldment w/ANSYS FEA

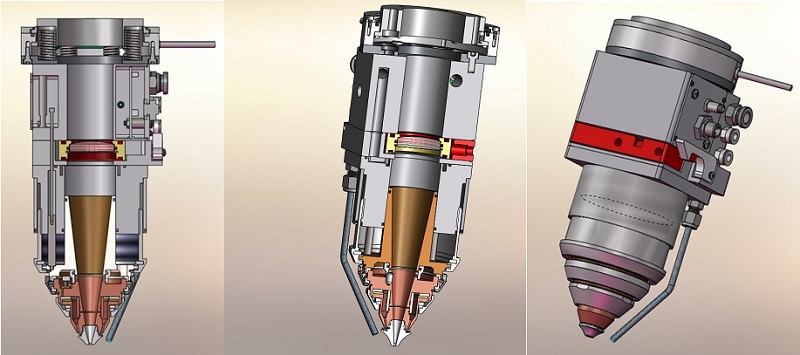

Laser Torch Head Assembly

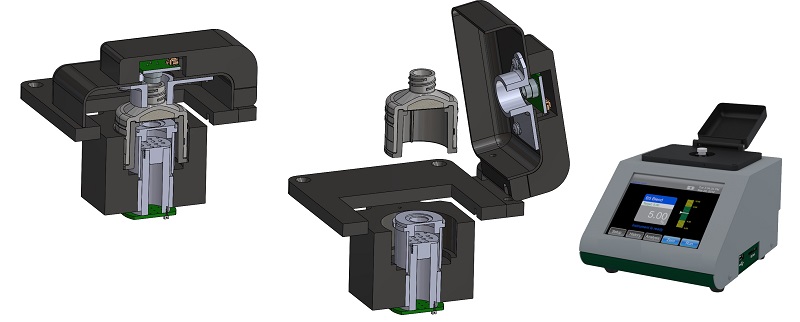

Fluid Sample System (w/ consumable) for Analytical Instrument

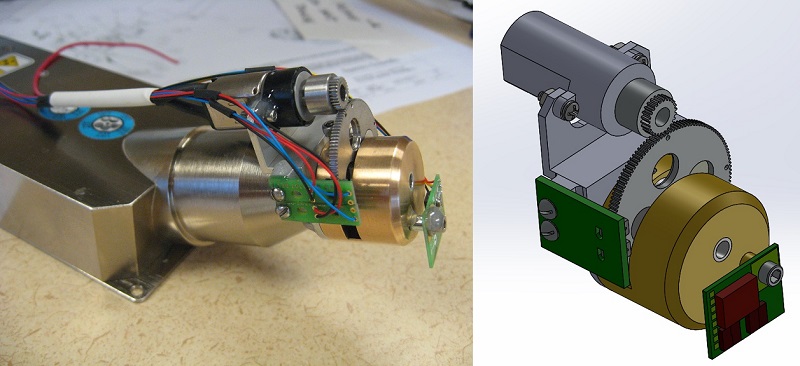

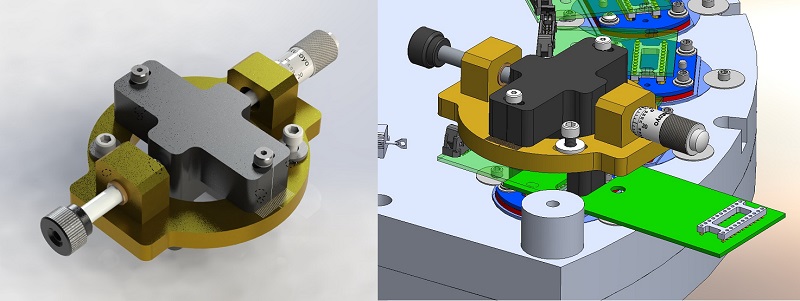

Hand Wind, Constant Velocity, Miniature Rotary Stage

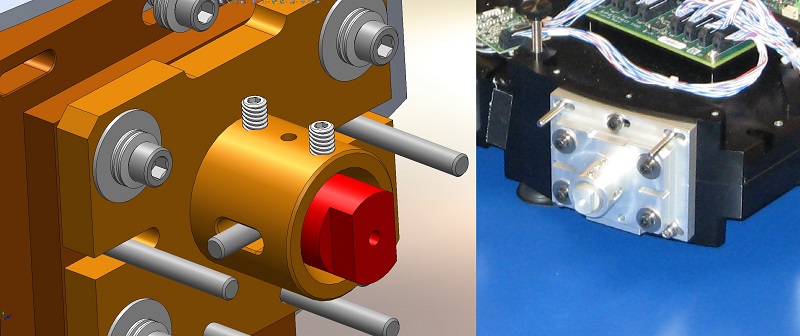

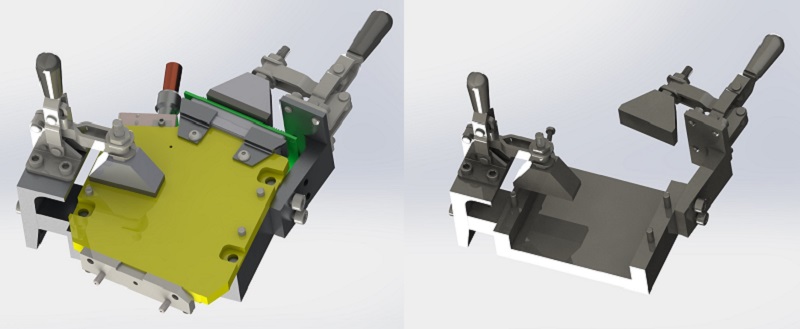

Optic Alignment Fixture

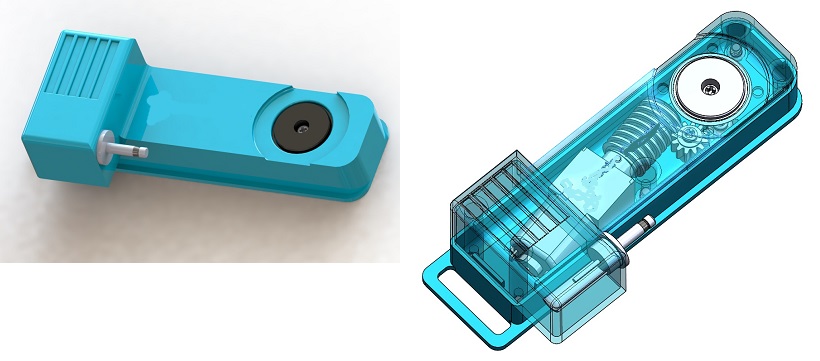

DC Powered Miniature Rotary Stage (3" long)

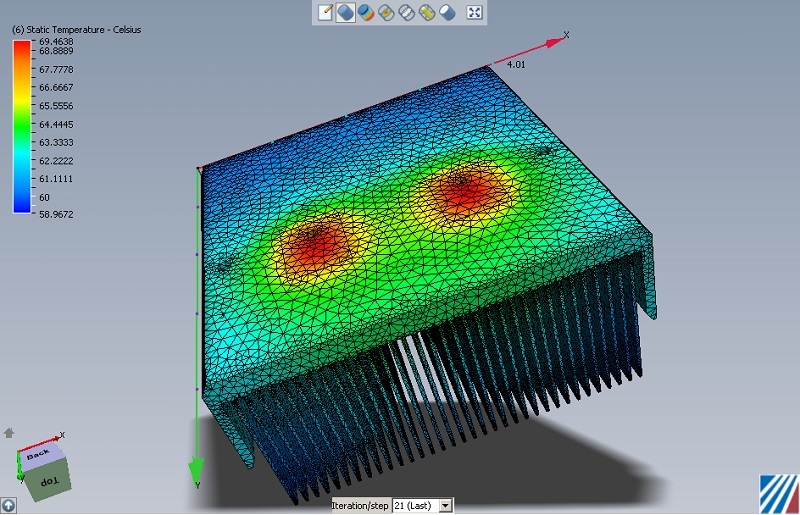

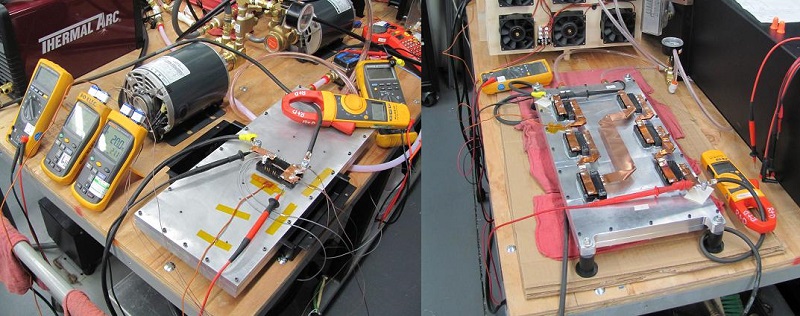

Design & Test of a High Power (3kW) Water Jacketed Cold Plate

Design and Test of an X-Ray Letharge (modeled in Pro-Engineer/Creo)

Thermal Analysis of Semiconductor Mounting Plate
